  • ZG系列电机振动给料机

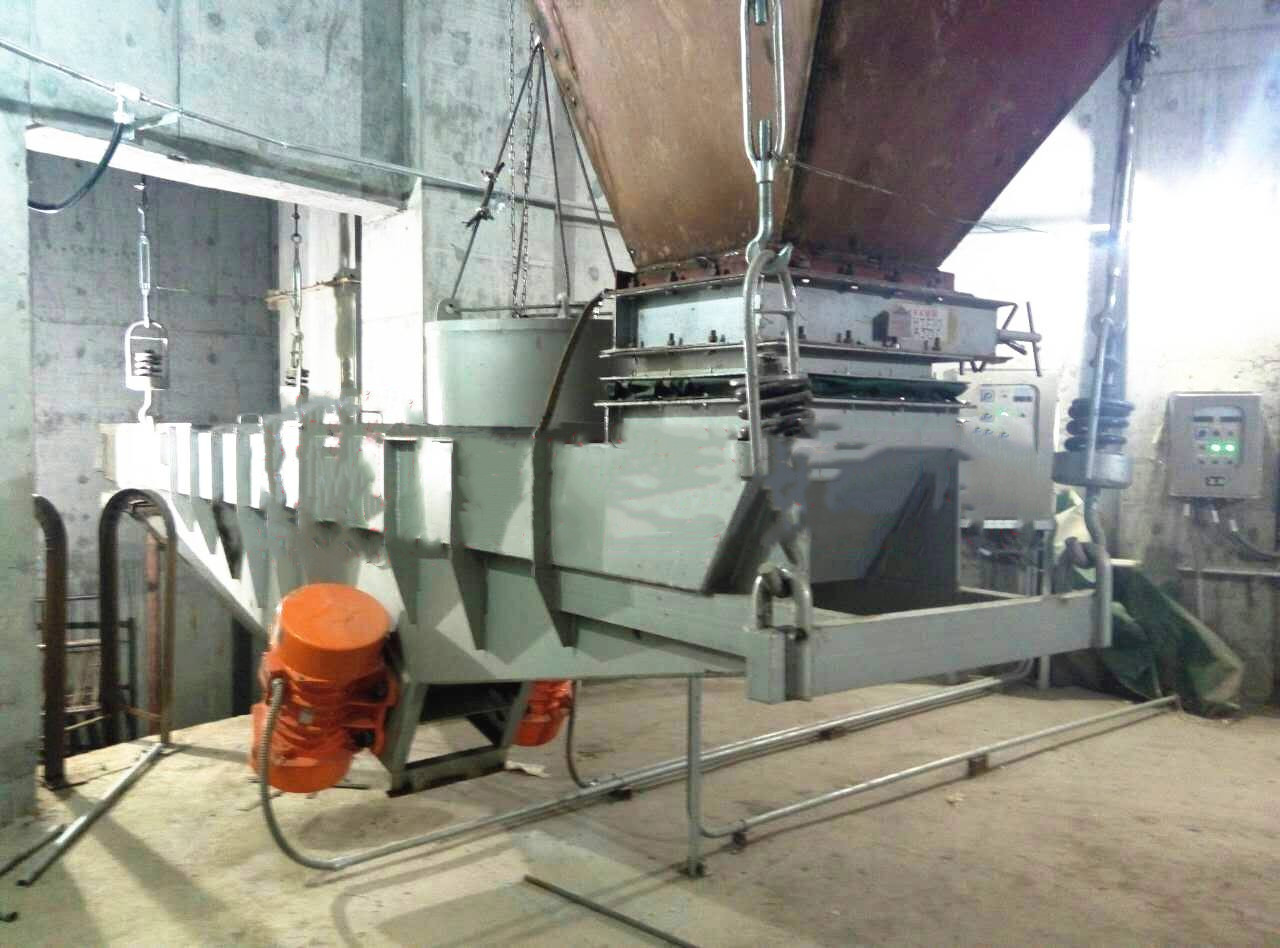

ZG系列电机振动给料机
产品特点:
ZG系列电机振动给料机适用于把块状、颗粒状及粉状物料从贮料仓或漏斗中均匀连续地给到受料装置中去,相比电磁式振动给料机,输送产量大,主要用于矿山、冶金、煤炭、建材、电力、化工、机械、轻工、粮食等各行业。


产品咨询热线:
13503809925

blob

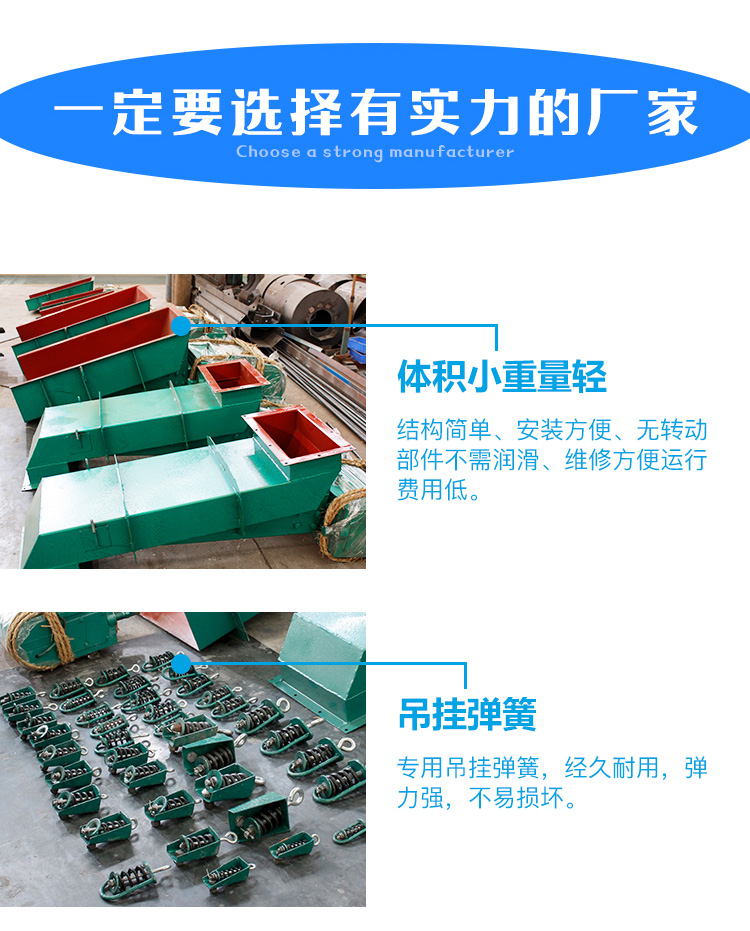

ZG系列振动给料机是一种新型、节能、通用给料设备,具有结构简单紧凑、使用维修方便,料槽磨损小;使用寿命长等特点。可用于自动配称、定量包装等自动控制的工艺流程中,实现自动化流水线生产。

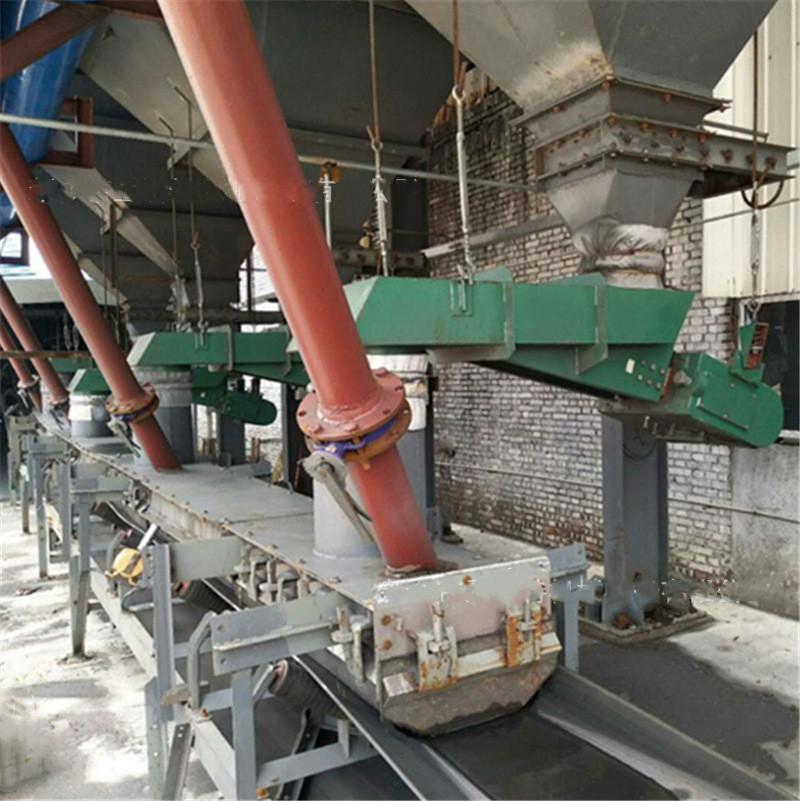

    广泛应用于冶金、矿山、煤炭、电力、耐火材料、建材、轻工、化工、铸造、粮食等行业。

ZG系列振动给料机-主要技术参数表:

型 号入料粒度
(mm)
处理量
(t/h)
功率
(kw)
振频
(HZ)
双振幅
(mm)
激振力
(KN)
重量(kg)单支点动载荷
(N)
封闭敞开
ZG-2550252X0.25252-32X2.524017430
ZG-3050302X0.25252-32X2.524618630
ZG-50100502X0.4252-32X528023538
ZG-60100602X0.4252-42X530224238
ZG-80100802X0.4252-42X531225638
ZG-1001001002X0.75252-52X838432149
ZG-2001502002X0.75252-52X843237249
ZG-3001503002X0.75252-52X1660255656
ZG-3501503502X0.75252-52X1664556856
ZG-4002004002X1.5253-52X2568660688
ZG-5002005002X1.5253-52X2591688688
ZG-7502507502X2.0164-62X3212581035161
ZG-100030010002X2.5164-62X4015001156185
ZG-150040015002X3.7164-62X5021001880420
ZG-200040020002X3.7164-62X5026302120420


戳我试试

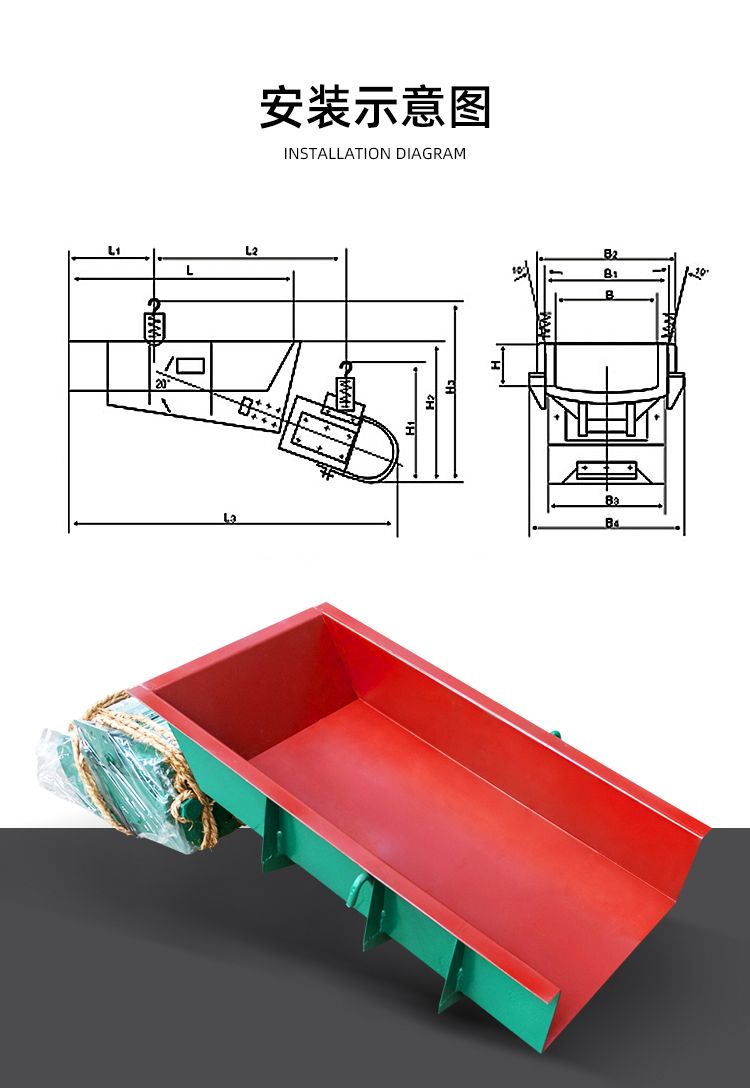

ZG系列振动给料机-外型安装尺寸(图一)

型 号LL1L2BB1B2HH1H2H3
ZG-25935200900512355350435200250150
ZG-30960200900550405400450250280150
ZG-501000215900612455450454260290200
ZG-60990225900658605500475310340200
ZG-8010422621000758605600475310340200
ZG-10011242621000864706700465320380230
ZG-20012813511220964806800510340400250
ZG-300148639014001072906900620340400250
ZG-350152039215001072906900620360420300
ZG-400158639215001118956950720850900300
ZG-50015074051500146612581250630950970380
ZG-750184643018001634140814007609851160400
ZG-10001846411180018341608160081510001046450
ZG-15002249357210020961740180084013101390500
ZG-20002494550240024462090215084015101770500


戳我试试

ZG系列振动给料机-外型安装尺寸(图二)

型 号LL1L2BB1HH1H2H3JXJ1J2XJ3
ZG-25F900200730512350400200100150300X200350X120
ZG-30F900200755601400400250130150350X200400X120
ZG-60F910225675701500430310140200450X300500X160
ZG-80F960262775813600430310140200550X300600X170
ZG-100F1000262765913700510320200230650X300700X200
ZG-200F11813518951066800590340250250750X300800X220
ZG-300F145639210701168900590340250250850X400900X240
ZG-400F145639211701268950720400320300850X400950X260
ZG-500F14604051125156812006804803203801150X5001200X335
ZG-750F16764301380188414008505504004001300X5001400X350
ZG-1200F172551013312230170011506504005001400X5001700X440
ZG-1800F197255016302595190011506804205001800X5001900X440
ZG-2000F227455018803010215011506804205002050X6002100X44


戳我试试

ZG系列振动给料机-外型安装尺寸(图三)

型 号LL1L2BB1HH1H2H3
ZG-25S960200900512350550200100150
ZG-30S960200900601400550250130150
ZG-60S990225900701500630310140200
ZG-80S10422621000813600650310140200
ZG-100S10922621000913700740320200230
ZG-200S129135112001066800840340250250
ZG-300S148639214001168900840340250250
ZG-400S1586392150012689501020400320300
ZG-500S15894051500156812501060480320380
ZG-750S18464301800188414001250550400400
ZG-1200S19445101800223017001650650400500
ZG-1800S21925502100259519001650680420500
ZG-2000S24945602400301021501650680420500
